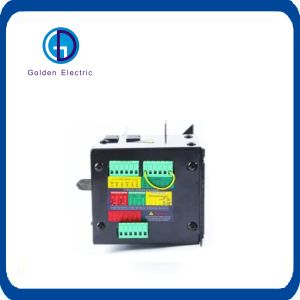

1A-3200A Type Automatic or Manual Gdq5 Changeover Switch Electric
Transfer Switch
GDQ5 Dual Power Automatic Transfer Switch Series is a kind of new
automatic transfer switch gathered switch and logic
controller,achieve mechanic and electricity turn into a integral
whole. It is suitable for using in the distribution equipment in
industry and business with rated insulating voltage up to 690V,
rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating
current up to 3200A ,supplying for switch automatically of Normal
power and reserve power in power system or switch automatically and
safety isolation of two sets load device etc. It can be used for
hospital, shop, bank, high building, coal mine, telecommunication,
iron mine, superhighway, airport, industrial flowing water line
etc.important situation where disallow power supply failure.
The switch can achieve full-automatic, compulsory "0", remote
control, urgent manual-operation;while have lack phase examination
and protection, under/over voltage examination and protection,
frequency examination and protection and delay regulation, electric
mechanism interlock etc. function
| Frame Class | 100 | 250 | 630 | 1600 | 3200 |
| Rate current In(A) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 225 | 250 | 315 | 350 | 400 | 500 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 |
| Rated insulation voltage(Ui) | 690V | 800V |
Rated concussion withstand
voltage(Uimp) | 8KV |
| Rated working voltage(Ue) | AC440V |
Rated short-circuit
connection capacity | 8KA | 17KA | 26KA | 67.5KA |
Rated short-time
withstand current(lcw) | 5kA/30ms | 10kA/60ms | 12.6kA/60ms | 32kA/60ms |
| Transfer time I-II or II-I | 2.5s | 1.2s | 1.8s | 2.4s |
| Using category | AC-33iB |
| Control voltage | AC220V |
| Rated frequency | Start | 20W | 325W | 355W | 440W | 600W |
| Normal | 62W | 74W | 98W | 120W |
| Weight(kg) 4Pole | 4.2 | 6.3 | 10 | 18 | 19 | 46.5 | 50 | 55 | 91 | 101 | 111 |
| Item | Specification | PCS/CTN | Item Size(CM) | Carton Size(CM) | K.W.(KG) | N.W.(KG) |
| GDQ5-100-4P | 16-100A | 6 | 25*15*14 | 38*30*36 | 25 | 24 |
| GDQ5-160-4P | 125-160A | 4 | 45*36.5*48 | 45*36.5*48 | 25.2 | 24.2 |
| GDQ5-250-4P | 180-250A | 2 | 46.3*44.2*29.5 | 46.3*44.2*29.5 | 19.25 | 18.25 |
| GDQ5-400-4P | 315-400A | 1 | 50.5*30.5*33 | 50.5*30.5*33 | 17.85 | 16.85 |
| GDQ5-630-4P | 500-630A | 1 | 50.5*30.5*33 | 50.5*30.5*33 | 18.75 | 17.75 |
| GDQ5-1000-4P | 800-1000A | 1 | 71*40*37 | 71*40*37 | 46.5 | 44.5 |
| GDQ5-1250-4P | 1250A | 1 | 71*40*37 | 71*40*37 | 50 | 48 |
| GDQ5-1600-4P | 1600A | 1 | 71*40*37 | 71*40*37 | 55 | 53 |
| GDQ5-2000-4P | 2000A | 1 | 71*50*60 | 71*50*60 | 91 | 89 |
| GDQ5-2500-4P | 2500A | 1 | 71*50*60 | 71*50*60 | 101 | 99 |
| GDQ5-3200-4P | 3200A | 1 | 71*50*60 | 71*50*60 | 111 | 102 |
Recommand Product
Packaging Details:
Standard Export Package
Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping
methods!
Delivery Detail:
Shipped in 7 days after payment
