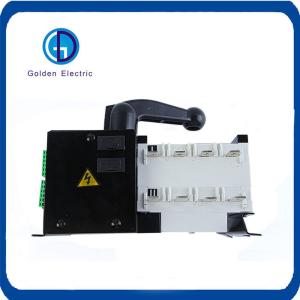

    3p ATS 1000A Automatic Changeover Switch 1 Second Changeover Time

    Ask Lasest Price
    Brand Name : Golden Electric /OEM
    Certification : ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949
    Delivery Time : Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays
    Payment Terms : LC, T/T, PayPal, Western Union
    Supply Ability : 20000PCS/Month
    • Product Details
    • Company Profile

    3p ATS 1000A Automatic Changeover Switch 1 Second Changeover Time

    Product Description

    GDQ5 Dual Power Automatic Transfer Switch Series is a kind of new automatic transfer switch gathered switch and logic controller,achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 690V, rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating current up to 3200A ,supplying for switch automatically of Normal power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and installation etc.important situation where disallow power supply failure.
    The switch can achieve full-automatic, compulsory "0", remote control, urgent manual-operation;while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc.


    Product Details


    ItemSpecificationPCS/CTNItem Size(CM)Carton Size(CM)K.W.(KG)N.W.(KG)
    GDQ5-100-4P16-100A625*15*1438*30*362524
    GDQ5-160-4P125-160A445*36.5*4845*36.5*4825.224.2
    GDQ5-250-4P180-250A246.3*44.2*29.546.3*44.2*29.519.2518.25
    GDQ5-400-4P315-400A150.5*30.5*3350.5*30.5*3317.8516.85
    GDQ5-630-4P500-630A150.5*30.5*3350.5*30.5*3318.7517.75
    GDQ5-1000-4P800-1000A171*40*3771*40*3746.544.5
    GDQ5-1250-4P1250A171*40*3771*40*375048
    GDQ5-1600-4P1600A171*40*3771*40*375553
    GDQ5-2000-4P2000A171*50*6071*50*609189
    GDQ5-2500-4P2500A171*50*6071*50*6010199
    GDQ5-3200-4P3200A171*50*6071*50*60111102


    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch

    Product Parameters

    Frame Class10025063016003200
    Rate current In(A)1620253240506380100125160200225250315350400500630800100012501600200025003200
    Rated insulation voltage(Ui)690V800V
    Rated concussion withstand
    voltage(Uimp)
    8KV
    Rated working voltage(Ue)AC440V
    Rated short-circuit
    connection capacity
    8KA17KA26KA67.5KA
    Rated short-time
    withstand current(lcw)
    5kA/30ms10kA/60ms12.6kA/60ms32kA/60ms
    Transfer time I-II or II-I2.5s1.2s1.8s2.4s
    Using categoryAC-33iB
    Control voltageAC220V
    Rated frequencyStart20W325W355W440W600W
    Normal62W74W98W120W
    Weight(kg) 4Pole4.26.310181946.5505591101111


    Packing

    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch
    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch
    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch
    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch



    Recommand Product

    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch
    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch
    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch

    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch
    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch
    Automatic Transfer Switch ATS for Generator 1A~3200A Electrical Changeover Switch


    FAQ

    1)Q:How can i trust your company?
    A:Golden electric is The top 10 ATS manufacture in China - more than 350 Agents in local market and more than 100 foreign clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class companies. Our company over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
    2) Q:Your products?
    A: Golden electric is factory for Automatic transfer swithc,Surge protector device,distribution box Enclosure, inverter, DC fuse etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 ,SGS etc.
    3) Q: Do you have forwarder?
    A: Yes, we have good forwarder cooperated over 10 years, they help us import and export . For small package orders, suggest to use by Express.
    4) Q: Your address ?
    A: Locates in Guangzhou province, China,welcome to visit us
    5) Q:What's the automatic transfer switch(ATS) guarantee?
    A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
    6) Q:What's about MOQ? Delivery time ?
    A: 1pcs for ATS. Normally less than 100PCS with stock, quick support.
    7) Q: What's the payment term?
    A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
    8) Q:What's your contact information ?
    Send us your inquiry !we will reply you in 24 hours !
