| Supply Ability : | 5000/Month |
| Certification : | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949 |
| Brand Name : | Golden Electric /OEM |
| Delivery Time : | Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays |
| Payment Terms : | LC, T/T, PayPal, Western Union |
Single-phase electricity meter box is a distribution box for
installing single-phase electricity meter. There is a meter reading
window on the door. It is sturdy and durable. It is mainly used in
civil buildings and commercial power distribution systems.
Product name | Meter box | |||
Material | Cold rolled steel plate sprayed, stainless steel | |||
Wiring | Busbar, wire, cable, primary plan, secondary principle | |||
Application | The meter box has different specifications and applicable
occasions. Choosing the right meter box can give full play to the
product's maximum function and efficiency. At present, the watch
boxes on the market mainly have three types: plastic material,
glass fiber reinforced plastic material, metal material, and so on.
The stainless steel meter box is made of cold-rolled steel plate or
stainless steel plate by bending and welding. The upper and lower
sides of the shell are equipped with movable knock-out holes, and
cover sealing measures are adopted. The grounding terminal is
installed inside the box to facilitate the wiring of the terminal box. | |||
Single Door
| Specification | Width(mm) | Height(mm) | Depth(mm) | |
| Mechanical instrument | Electronic instrument | |||
| 1 households | 220 | 250 | 150 | 120 |
| 2 households | 350 | 250 | 150 | 120 |
| 3 households | 480 | 250 | 150 | 120 |
| 4 households | 350 | 500 | 150 | 120 |
| 6 households | 480 | 500 | 150 | 120 |
| 8 households | 600 | 500 | 150 | 120 |
| 10 households | 750 | 500 | 150 | 120 |

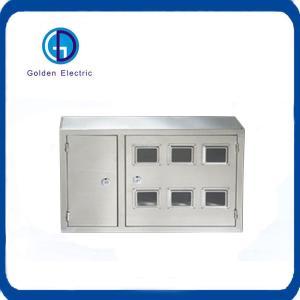

Double Door
| Specification | Width(mm) | Height(mm) | Depth(mm) | ||||
| W | W1 | W2 | Mechanical instrument | Electronic instrument | |||
| Open the door left and right | 1 households | 400 | 200 | 200 | 250 | 150 | 130 |
| 2 households | 400 | 200 | 200 | 500 | 150 | 130 | |
| 4 households | 550 | 200 | 350 | 500 | 150 | 130 | |
| 6 households | 700 | 220 | 480 | 500 | 150 | 130 | |
| 8 households | 850 | 250 | 600 | 500 | 150 | 130 | |
| 10 households | 1000 | 250 | 750 | 500 | 150 | 130 | |

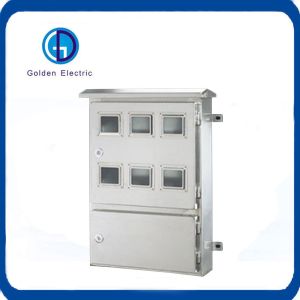

| Specification | Width(mm) | Height(mm) | Depth(mm) | ||||
| H | H1 | H2 | Mechanical instrument | Electronic instrument | |||
| Open the door up and down | 1 households | 220 | 450 | 250 | 200 | 150 | 130 |
| 2 households | 350 | 450 | 250 | 200 | 150 | 130 | |
| 3 households | 480 | 450 | 250 | 200 | 150 | 130 | |
| 4 households | 350 | 750 | 500 | 250 | 150 | 130 | |
| 6 households | 480 | 750 | 500 | 250 | 150 | 130 | |
| 8 households | 600 | 750 | 500 | 250 | 150 | 130 | |
| 10 households | 750 | 750 | 500 | 250 | 150 | 130 | |
Three Door
| Specification | Width(mm) | Height(mm) | Depth(mm) | ||||
| W | W1 | W2 | H | H1 | H2 | ||
| 4 households | 600 | 250 | 350 | 750 | 500 | 250 | 150 |
| 6 households | 750 | 250 | 500 | 750 | 500 | 250 | 150 |
| 8 households | 850 | 250 | 600 | 750 | 500 | 250 | 150 |
| 10 households | 1000 | 250 | 750 | 750 | 500 | 250 | 150 |
| 12 households | 850 | 250 | 600 | 1000 | 750 | 250 | 150 |
| 15 households | 1000 | 250 | 750 | 1000 | 750 | 250 | 150 |
| 18 households | 1150 | 250 | 900 | 1000 | 750 | 250 | 150 |









|
