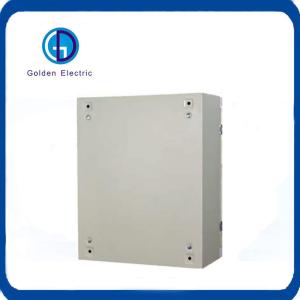

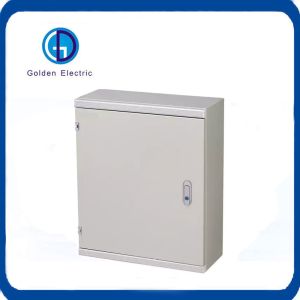

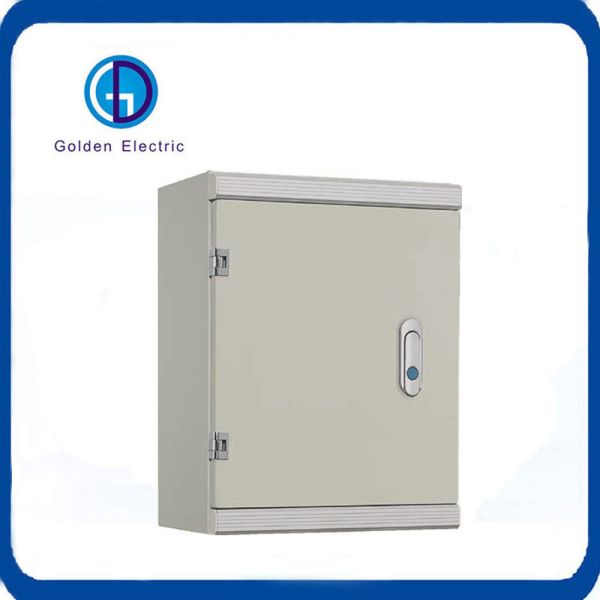

The luxury base industry control box is made of electrolytic steel
plate bending and welding, and the surface is treated by epoxy
resin electrostatic spraying, which is beautiful and durable.
mounted on the box Sealing rubber strips to prevent dust and
rainwater from infiltrating; movable knock-out holes on the upper
and lower sides of the box, which have been covered and sealed; the
box is equipped with a mounting bottom plate, which can install
electrical equipment. The door can be opened more than 90° and
rotate flexibly.
Material
Body and door manufactured in 1.2/1.5mm sheet steel
Mounting plate with folded edge in 1.2mm sheet steel
Finished with thermosetting expoxy polyester powder coating. Body
and door textured finish
Mounting plate in smooth finish
Surface finish
Body and door: Epoxy polyester powder coating textured finish
Mounting plate: Epoxy polyester powder coating flat finish
Sealing strip
Taking one time watering into shape,good looking,strong,watering
proof.
Screws
Mounting plate use stainless steel screws for fixing.
Avoiding rusting on surface.
Hinge
Taking high strong hinge,closly connecting,easy open and closed.
Cable Hole
Square hole with Foam.
Improving the waterproof features.
| Specification | Dimensions(mm) | Installation size(mm) |
| W | H | E | W' | H' |
| GD-JXF2 - 3025/20 | 250 | 300 | 200 | 190 | 325 |
| GD-JXF2 - 3025/25 | 250 | 300 | 250 | 190 | 325 |
| GD-JXF2 - 3030/20 | 300 | 300 | 200 | 240 | 325 |
| GD-JXF2- 3030/25 | 300 | 300 | 250 | 240 | 325 |
| GD-JXF2 - 4030/20 | 300 | 400 | 200 | 240 | 425 |
| GD-JXF2 - 4030/25 | 300 | 400 | 250 | 240 | 425 |
| GD-JXF2- 5040/20 | 400 | 500 | 200 | 340 | 525 |
| GD-JXF2- 5040/25 | 400 | 500 | 250 | 340 | 525 |
| GD-JXF2 - 6040/20 | 400 | 600 | 200 | 340 | 625 |
| GD-JXF2- 6040/25 | 400 | 600 | 250 | 340 | 625 |
| GD-JXF2 - 6050/20 | 500 | 600 | 200 | 440 | 625 |
| GD-JXF2- 6050/25 | 500 | 600 | 250 | 440 | 625 |
| GD-JXF2- 7050/20 | 500 | 700 | 200 | 440 | 725 |
| GD-JXF2 - 7050/25 | 500 | 700 | 250 | 440 | 725 |
| GD-JXF2 - 8060/20 | 600 | 800 | 200 | 540 | 825 |
| GD-JXF2 - 8060/25 | 600 | 800 | 250 | 540 | 825 |
| GD-JXF2 - 10080/20 | 800 | 1000 | 200 | 740 | 1025 |
| GD-JXF2 - 10080/25 | 800 | 1000 | 250 | 740 | 1025 |
