GD-JXF series foundation box products all use cold-rolled steel
plates, and the surface is treated with epoxy resin electrostatic
spraying, which is beautiful and durable. The protection level can
reach IP65, and the box is equipped with
There is an installation bottom plate, which can install various
electrical equipment. The door panel can be opened more than 90
degrees and can be rotated flexibly.

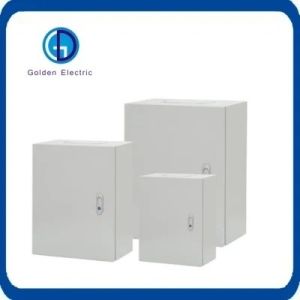

GD-JXF indoor metal enclosure box is designed to be assembled into
the distributing board with various control functions according to
the type of components, specification and quantity. The structure is so tight that can be very perfect. it's made of cold-rolled steel board or stainless alloy. The Wall
Mounting Enclosure is designed to adapt all kinds of Electrical
switchgear & control gear assemblies. It is suitable for variety of
Electrical installations in commercial & light industrial premises.
It is designed for indoor & outdoor applications. We can provide a
wide range of cabinets for your reference.
Fully automatic sealing strip casting machine
One-shot molding, self-skinning, and traditional adhesive
Compared with the sealed sealing strip, it has the advantages of
rainproof, fireproof,
High temperature resistance, high strength, beautiful appearance
and other advantages.
Removable hinge
The door panel can be interchanged left and right, and the
traditional welding
Compared with the hinge, it also has beautiful appearance and high
strength.
No desoldering, breakage and other advantages.
CNC automatic production line processing
The special hemming process improves the product's
compressive strength, and reduces the welding process,
Greatly improved production efficiency.
| Specification | Dimensions(mm) | Installation size(mm) |
| W | H | E | W' | H' |
| GD-JXF1 - 3025/15 | 250 | 300 | 150 | 190 | 325 |
| GD-JXF1 - 3025/20 | 250 | 300 | 200 | 190 | 325 |
| GD-JXF1 - 3030/15 | 300 | 300 | 150 | 240 | 325 |
| GD-JXF1 - 3030/20 | 300 | 300 | 200 | 240 | 325 |
| GD-JXF1 - 4030/15 | 300 | 400 | 150 | 240 | 425 |
| GD-JXF1 - 4030/20 | 300 | 400 | 200 | 240 | 425 |
| GD-JXF1 - 5040/15 | 400 | 500 | 150 | 340 | 525 |
| GD-JXF1 - 5040/20 | 400 | 500 | 200 | 340 | 525 |
| GD-JXF1 - 6040/20 | 400 | 600 | 200 | 340 | 625 |
| GD-JXF1 - 6040/25 | 400 | 600 | 250 | 340 | 625 |
| GD-JXF1 - 6050/20 | 500 | 600 | 200 | 440 | 625 |
| GD-JXF1 - 6050/25 | 500 | 600 | 250 | 440 | 625 |
| GD-JXF1 - 7050/20 | 500 | 700 | 200 | 440 | 725 |
| GD-JXF1 - 7050/25 | 500 | 700 | 250 | 440 | 725 |
| GD-JXF1 - 8060/20 | 600 | 800 | 200 | 540 | 825 |
| GD-JXF1 - 8060/25 | 600 | 800 | 250 | 540 | 825 |
| GD-JXF1 - 10080/20 | 800 | 1000 | 200 | 740 | 1025 |
| GD-JXF1 - 10080/25 | 800 | 1000 | 250 | 740 | 1025 |


- Golden Electric Co.,Ltd ,was foundad in 2007, we are professional
for make AC and DC electric items such as cable gland, isolator switch ,
fuse , breaker , distribution box , PV combiner box ,surge
protector, Industrial plug and socket,Wind Turbine, Solar product
and so on.
- Golden has been granted ISO9001 management system certifications.
The comprehensive product line has more than 1000 models which have
been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to
UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South
Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and
competitive price to all customers.1)Q:How can i trust your company?
A:Golden electric is The top 10 manufacture in China - more than
350 Agents in local market and more than 100 foreign clients make
OEM,ODM order from us,Golden electric is a big company, we have
cooperation with LS, EKF the world-class companies. Our company
over 100 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS
certificates.
2) Q:Your products?
A: Golden electric is factory for Circuit Breaker,Automatic
transfer switch,Surge protector device,distribution box Enclosure,
inverter, DC fuse etc. Providing customers very competitive
sources, and can be your sourcing agent in China. Goods are
following international standards, IE, CE, ISO9001 ,SGS etc.
3) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 10 years, they help
us import and export . For small package orders, suggest to use by
Express.
4) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
5) Q:What's the Metal Distribution Box guarantee?
A: 2 years warranty. If customer's problem, then customer burden.
If our problem, then we send new goods to customer to replace asap.
6) Q:What's about MOQ? Delivery time ?
A: 1pcs for metal distribution box.
7) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about
50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order .
8) Q:What's your contact information ?
Send us your inquiry !we will reply you in 24 hours !
