| Model Number : | Plastic Waterproof Junction Box |
| Supply Ability : | 5000/Month |
| Certification : | ISO 9001, ISO 9000, ISO 14001, ISO 14000, ISO 20000, OHSAS/ OHSMS 18001, IATF16949 |
| Brand Name : | Golden Electric /OEM |
| Delivery Time : | Peak Season Lead Time: more than 12 months Off Season Lead Time: within 15 workdays |
| Payment Terms : | LC, T/T, PayPal, Western Union |

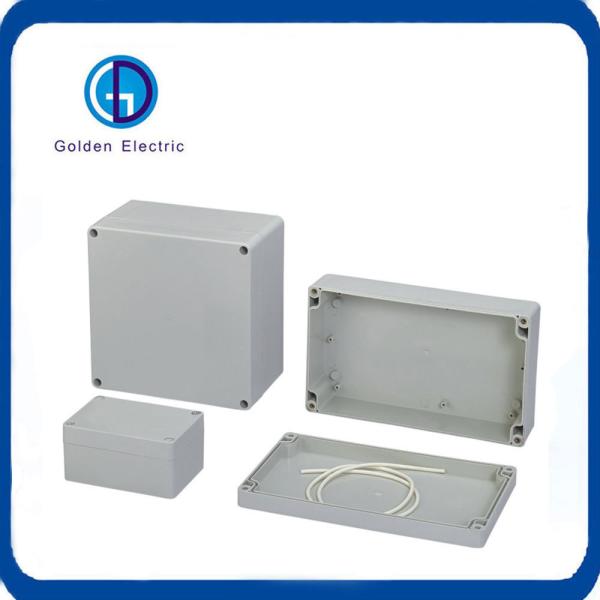

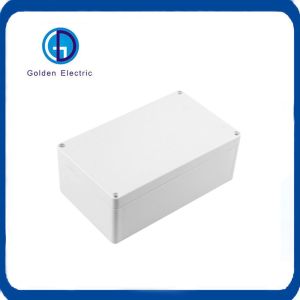

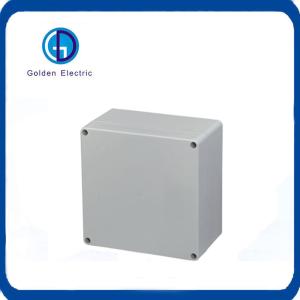

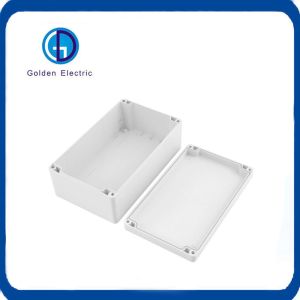

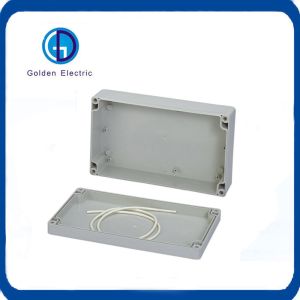

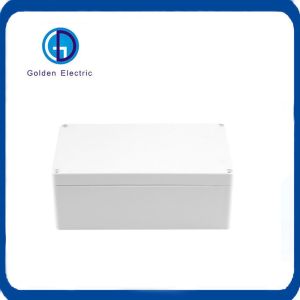

The plastic switch box and waterproof box are made of high quality
PC or ABS, a unique tool that is used for injection molding
produces a new type haigh security product to protect them from the
severe environment. The box body may be different and has various
specifications, it cover can be non-transparent or transparent, can
be hinge type or bolted. This switch box are specially used on
button, terminal boards,electronic device control equipment, is
featured with waterproof, dustproof and corrosion proof , can be
used instead of glass fiber seal box.

1.Elegant external shape, high firmness.
2.Combined body and cover are fixed with four plastic screws that
are difficult to fall off.
3.Its specification and size can be designed based on the customer requirements.
4.Economic and affordable.
5. Net weight only accounts for the iron box of about 1/4, to facilitate handling and operation, no corrosion, good insulation.
| Item NO. | L W H (mm) | IP | GW (kg) | NW (kg) | QTY/CTN (pcs) | Carton Size (mm) |
| GD-FB | 200*120*75 | 67 | 23 | 22 | 80 | 82.5*62.5*32 |
| GD-FB | 200*120*113 | 67 | 24 | 23 | 42 | 82.5*35.5*64.5 |
| GD-FB | 200*120*56 | 67 | 22 | 21 | 75 | 82.5*35.5*64.5 |
| GD-FB | 158*90*60 | 67 | 24 | 23 | 100 | 65*46.5*32 |
| GD-FB | 115*90*55 | 67 | 23 | 22 | 100 | 48*47*30 |
| GD-FB | 100*68*50 | 67 | 25 | 24 | 250 | 70.5*53*25 |
| GD-FB | 160*160*90 | 67 | 23 | 22 | 70 | 82.5*35.5*64.5 |
| GD-FB | 263*182*95 | 67 | 22 | 21 | 32 | 55*75*40 |
| GD-FB | 263*182*60 | 67 | 22 | 21 | 48 | 55*75*40 |
| GD-FB | 263*182*125 | 67 | 20 | 19 | 24 | 55*75*40 |
| GD-FB | 280*195*135 | 67 | 19.5 | 18.5 | 12 | 58*60*29 |
| GD-FB | 320*240*110 | 67 | 24 | 23 | 20 | 82.5*35.5*64.5 |
| GD-FB | 320*240*140 | 67 | 23 | 22 | 16 | 66*50*58 |
| GD-FB | 320*240*155 | 67 | 21 | 20 | 12 | 66*50*49 |
| GD-FB | 380*260*105 | 67 | 22 | 21 | 18 | 78*80*34 |
| GD-FB | 380*260*120 | 67 | 23 | 22 | 18 | 78*80*38 |
| GD-FB | 380*260*150 | 67 | 24 | 23 | 18 | 78*80*44 |
| GD-FB | 120*120*90 | 67 | 26 | 25 | 100 | 62*50*47 |
| GD-FB | 230*150*85 | 67 | 24 | 23 | 50 | 77*48*44.5 |
| GD-FB | 230*150*87 | 67 | 24 | 23 | 50 | 77*48*44.5 |
| GD-FB | 83*58*33 | 67 | 23 | 22 | 500 | 68*43*31 |
| GD-FB | 63*58*35 | 67 | 26 | 25 | 672 | 70.5**53*25 |
| GD-FB | 240*160*90 | 67 | 18 | 17 | 50 | 82.5*50*47 |
| GD-FB | 240*160*120 | 67 | 18 | 17 | 40 | 82.5*50*50 |
| GD-FB | 160*110*90 | 67 | 20 | 19 | 100 | 66*57*47 |
| GD-FB | 192*188*100 | 67 | 18 | 27 | 45 | 60*58*52 |
| GD-FB | 83*81*56 | 67 | 23 | 22 | 480 | 52*66*58 |
| GD-FB | 290*210*100 | 67 | 20 | 21 | 16 | 60*44*42 |
| GD-FB | 300*280*140 | 67 | 21 | 20 | 16 | 62*58*58 |
| GD-FB | 250*170*120 | 67 | 23 | 22 | 24 | 52*53*50 |

Box material : ABS
Stopper material : PVC
Material characteristics : Impact , heat , low temperature and chemical resistance , excellent electrical performance and surface gloss , etc .
Application : Suitable for indoor and outdoor etectric ,
communication , fire fighting apparatus , iron and steel smelting ,
petrochemical industry , electron , power system , railway ,
building , mine , air and sea port , hotel , ship , works , waste
water treatment equipment , environmental eauipment and so on .
Installation : 1 Inside : there are the installation holes in the
base for circuit board or din rail .
2 Outside :The products can be directly fixed on the wall or other
flat boards with screws or nails via the screw holes in the base .
Outlet hole : Cutting a hole in the PVC stopper as related cable size or installing cable gland to get better waterproof performance









- Golden Electric Co.,Ltd ,was foundad in 2017, we are professional
for make AC and DC electric items such as cable gland, isolator switch ,
fuse , circuit breaker , distribution box , PV combiner box ,surge
protector, Industrial plug and socket,Solar product etc.
- Golden has been granted ISO9001 management system certifications.
The comprehensive product line has more than 1000 models which have
been approved by TUV,CE,CQC,SGS,ROHS,SASO. The productsells well to
UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South
Africa... more than 60 countries and regions.
- Golden is always striving hard to provide the best services and
competitive price to all customers.
1) Q:How can i trust your company?
A:Golden electric is The top 10 manufacture in China - more than 350 Agents in local market and more than 100 foreign
clients make OEM,ODM order from us,Golden electric is a big company, we have cooperation with LS, EKF the world-class
companies. Our company over 100 employees, products pass
CE,IEC,TUV,SAA, RCM, ROHS certificates.
2) Q:Your products?
A: Golden electric is factory for Junction Box,Isolator
Switch,Automatic transfer switch,Surge protector
device,distribution box Enclosure, inverter, DC fuse etc. Providing
customers very competitive sources, and can be your sourcing agent
in China. Goods are following international standards, IE, CE,
ISO9001 ,SGS etc.
3) Q: After Sales Service?
A: We will provide the best After-sales Service
4) Q: What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about
50% advanced payment, balance before shipment.PAYPAL,WESTERN UNION,CASH for small order.
5) Q: Your address ?
A: Locates in Guangzhou province, China,welcome to visit us
